767-300: Cargo Loading Configurations
For more detailed information, download the PDF document below

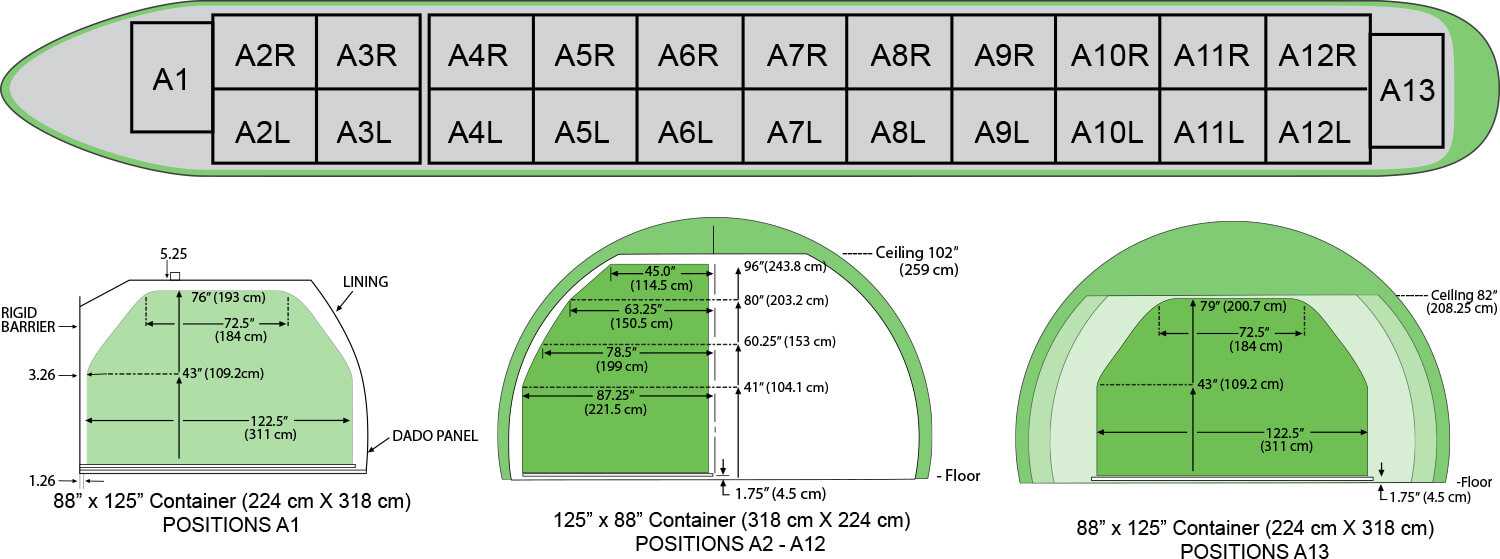

Pallet Positions
Netted pallet in position A1 are limited to a height of 76.0″ (193cm)
Netted pallet in position A13 are limited to a height of 79.0″ (200cm)
All othe pallet dimensions are the same as container dimensions
Our Loading Configurations
Configuration A
Configuration B
Configuration C
Configuration D
Configuration E
Configuration G
| Configuration A | 125″ x 88″ (318 cm x 224 cm) Side by Side x 22; 88″ x 125″ (224 cm x 318 cm) Transverse x 2; |
| Payload gross | 125,000 lbs (56,700 kg) |
| Payload net | 115,000 lbs (52,160 kg) |
| Volume : (MD) | 10,947 ft3 (310 m3) |
| Volume : (LD) | 3,750 ft3 (106 m3) |
| Range.max Payload | 3,300 nm/6.100 km |
Configuration A
125″ x 88″ (318 cm x 224 cm) Side by Side x 22; 88″ x 125″ (224 cm x 318 cm) Transverse x 2;
Payload gross
125,000 lbs (56,700 kg)
Payload net
115,000 lbs (52,160 kg)
Volume : (MD)
10,947 ft3 (310 m3)
Volume : (LD)
3,750 ft3 (106 m3)
Range.max Payload
3,300 nm/6.100 km
